Megacycle cams. to the right is example of what you get, cam profile of your choice , assembly lube and timing sheet. Here is a list of most popular profiles.
As with all performance parts it is always good to check clearances.
Price is $275.00 on your core.
251-30 Best off road tt style riding. Must use modified pistons and springs
251-40 Good mild cam to use with stock pistons and springs , good low end.
251-62 Out favorite short track and 1/2 mile cam.
251-80 Good torque cam a friend loves with cam on short track.
251-x18 Full race top end cam ( i have never used this but sold many)
Megacycle harden rockers, Megacycle recommends using these when using there hard welded cams.
Part#251-RA $95.00 each exchange. Send me your old rockers. Rocker core charge is $50.00 each if you don't have them.
Vernier Sprocket from megacycle, for on the nose timing. I have the instructions in my service data page.
Part#5002 $89.00 Send me your old sprocket and save $10.00 must have a good pin hole .
RD Titanium top spring kit.
Part#110-y $149.00
RD springs, bottoms and shims. Use your tops and keepers.
Part#102-sbs $89.00
Kibble White TT500, SR500 XT500 valve quides .
Part# 81-8000 standard guide $47.00
Part# 81-8101 .001 over size $47.00
Part# 81-8010 .010 over size $47.00
Carrillo Rods best in the business both ends rebuild able. The 7mm stroker rod is 3.5mm shorter then stock.
Part# YA-TT5>-05710N standard length rod $249.00
Part# YA-TT5>-05571N stroker rod $249.00
New Stock length rod, came from a new MFG in Taiwan, we tried these and have been reliable. I would say they are as good as the stock rods. The small end is rebuild able. Come with pin and bearing.
Part# RY-2215 $125.00
Formally Powerdynamo ignition now Vape. One of the best, in my opinion ignition for the SR, XT and TT. Been using since 2007 and are rock solid and easy to install. Comes with adjustable advance unit. This is for the street but if you want weight on you race motor this is a good way of doing it. Just don't connect regulator. Lighting coil is separate and does not take away from ignition power
Part# 72 92 999 $578.00 Price subject to change due to Euro to dollar exchange rate.
Electrex World Ignition, easy install reliable internal spud rotor. We started using this after Penton Racing folks retired and could no longer get the PVL. By far this is easier to install and has been as i said very reliable.
Part# HRS STK-407 $345.00
Electrex World Ignition with outer rotor. This uses the stock rotor of an xt with part$ 0038000 on the rotor. Great for those that like more crank weight.
Part# HRS STK-405 $300.00
JE 540 (90MM) piston set, piston, pin, rings and clip. Bore size 3.543 . 11 to 1 Compression. I also have this in over bore 3.563 bore size.
As with all performance parts it is always good to check clearances.
Part# 298182 90mm 3.543 bore $155.00
Part# 272906 90.5mm 3.563 bore $155.00
Part# 285493 95mm 3.740 bore $165.00
La Sleeves
YA-375 Stock 500 size sleeve $148.00
YA-375B 540 bore size sleeve $148.00
YA-375BB 95mm bore size sleeve $196.00

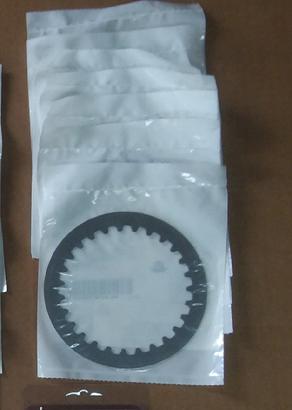

BARNETT CLUTCH FRICTION DISKS
Part# 301-90-10013 $15.00 EACH
Part# 301-90-10013Kit $120.00 for all 8.
BARNETT CLUTCH METAL PLATES
Part# 401-90-040715 $6.00EACH
Part# 401-90-040715SET $42.000 A SET
BARNETT CLUTCH SPRINGS 6per set
Part# 501-50-06042 $22.00
Dual oil line , feed both rocker arm. $75.00
K&N Crank case vent filter
Part# 62-1560 $28.00
SR500 Right hand shift conversion. Send you cover and you shift shaft and 1 xs650 shift shaft if you want left and right shft ability. This is the best case cover to do as it is aluminum and we can weld it.
Part#10104 $125.00
TT/XT 500 Right had shift conversion. Send your cover with shift shaft, if you want left and right send another shift shaft (preferred xs650 shaft). This is not welded as these covers are magnesium
Part# 10104A $150.00
PART #
DESCRIPTION
PRICING
IN STOCK
SPECIALTY NOTES
10103
500 remote start kit
$100.00 for parts
call
installation is $45.00 send a good left side cover SR covers are best
